NSe boundary condition generation — runbook

Practical how-to. For dataset-level details (CMEMS product IDs, coverage dates, Baltic override rationale) see ocean-prep/docs/nse_boundary_sources.md — that doc explains what data; this one explains what to run, in what order, from where.

0. The boundary point file — read this first

Canonical copy: NSe/Bathymetry/nse_bdy_lonlat.txt (currently 311 points). Moved here from NSe/nse_bdy_lonlat.txt on 2026-08-17 — this file’s entire validity is defined by wet/land status against NSe/Bathymetry/bathymetry_nse.nc, needs re-verification after every bathymetry regeneration (see below), and lives alongside the other grid/mask artifacts there, not the YAML domain configs in NSe/config/.

This is the file the running model actually uses — confirmed empirically by comparing it against lon_bdy/lat_bdy in a getm-dump.nc crash dump written by a live run: exact match, 0 points different. Treat any other copy as untrustworthy until proven otherwise (see “Known copies” below).

Policy: this file belongs to the setup. It must live under NSe/Bathymetry/, not in ocean-prep/bdy_coords/ or boundaries.old/bdy_coords/ or the oceanicu_3d/ repo root, and not as a symlink from those locations either — every consuming config references this one real path directly (fixed 2026-08-17; see §3). Verify with ls -la / grep -rln nse_bdy_lonlat before trusting any copy if this ever looks inconsistent again.

Verifying it against the bathymetry

Every boundary point must land on a wet cell in the current NSe/Bathymetry/bathymetry_nse.nc. Check with:

import netCDF4, numpy as np

with netCDF4.Dataset("NSe/Bathymetry/bathymetry_nse.nc") as nc:
    lon = np.array(nc["lon"][:]); lat = np.array(nc["lat"][:])
    mask = np.array(nc["ocean_mask"][:]).astype(bool)

pts = []
with open("NSe/Bathymetry/nse_bdy_lonlat.txt") as f:
    for line in f.readlines()[2:]:
        line = line.strip()
        if not line: continue
        lo, la = map(float, line.split(","))
        pts.append((lo, la))

n_land = 0
for lo, la in pts:
    i = int(np.argmin(np.abs(lon - lo)))
    j = int(np.argmin(np.abs(lat - la)))
    if not mask[j, i]:
        n_land += 1
        print("ON LAND:", lo, la)
print(f"{len(pts)} points, {n_land} on land")

Run this after every bathymetry regeneration. generate_nse_bathymetry.py (mask_regions, rx0 smoothing, thalweg fixes) can change which cells are wet — a point that was fine yesterday can end up on land today with no error or warning anywhere else. This actually happened on 2026-08-03: a fix to mask_regions rectangle-boundary floating-point tolerance (for an unrelated single-row “Humber” closure) retroactively closed the eastern edge of the pre-existing “West of Orkney” region, which had been silently not closing due to the same rounding issue. 123 of 311 points ended up on land as a side effect of a bathymetry fix that had nothing to do with boundaries.

Update, 2026-08-17: re-checked against the current bathymetry_nse.nc — 0 of 311 points on land. The bathymetry has evidently been regenerated/corrected again since the above regression, independently of any boundary-point edit. A partial fix for the 123-point regression was attempted the same day it happened (121 of the 123 points moved to nearby wet cells, 2 dropped as a redundant corner vertex once both adjacent segments shifted) but landed on the wrong file (oceanicu_3d/nse_bdy_lonlat.txt at the repo root, not the canonical copy) and was never actually applied — now archived at NSe/Bathymetry/nse_bdy_lonlat.txt.mislanded_edit_20260803 for reference in case this regression (or a similar one) recurs. Always re-run the check above before trusting either “0 on land” or an old point-count from this doc — bathymetry regenerations happen independently of this file and can silently invalidate either state.

If a point needs to move or be dropped

1. Back up first — always: .bak copies with a timestamp suffix if a second round of fixes is likely (see NSe/Bathymetry/nse_bdy_lonlat.txt.bak* for the pattern used so far).
2. Edit NSe/Bathymetry/nse_bdy_lonlat.txt directly (plain lon,lat per line, header T-grid / lon,lat).
3. If boundary_data NC files already exist (see §2 below) for the old point list, they must be re-cut to match — the point count/order in the NC files’ nbdyp dimension must stay in lockstep with the text file, or pygetm will refuse to load them ("length 312 ... actual extent 317" type errors) or — worse — silently misalign points if counts happen to match by coincidence. Use NSe/trim_bdy.py <src.nc> <dst.nc> <idx0> ... to drop specific 0-based nbdyp indices from hourly/daily reference files; verify the index against boundary_lon/boundary_lat in the NC file first, not just the text file (they can drift independently — see “Known copies”).
4. If more than a couple of points changed, it may be simpler to fully regenerate the reference data from source (§2) than to patch the NC files by hand.

1. The three-stage pipeline

NSe boundary conditions are built in three independent stages, each with its own config and CLI tool (all ocean-prep, pip-installed editable — works from any cwd):

Stage 1 must exist before stage 2a can run — run-delta-boundaries reads the historical hourly/daily files as its cycling reference (it has no independent boundary-point list; it inherits points from those NC files' own boundary_lon/boundary_lat/segment_id variables). Stage 2b (tidal) is independent of stage 1 — it reads TPXO9 + CMIP6 directly, using NSe/Bathymetry/nse_bdy_lonlat.txt for its own point list.

Stage 1 — historical reference (CMEMS)

cd /home/kb/source/repos/OceanICU/oceanicu_3d/NSe    # nse_bdy_create.yaml lives here (NSe-specific, not in ocean-prep)
run-cmems-boundaries --config config/nse_bdy_create.yaml --dryrun
run-cmems-boundaries --config config/nse_bdy_create.yaml
# selectively:
run-cmems-boundaries --config config/nse_bdy_create.yaml --dataset temperature salinity
run-cmems-boundaries --config config/nse_bdy_create.yaml --category physics

nse_bdy_create.yaml’s boundary_points.file_path is a real absolute path directly at NSe/Bathymetry/nse_bdy_lonlat.txt — no symlink indirection (fixed 2026-08-17; every domain setup follows this same pattern, its own canonical copy in its own repo, referenced directly — a shared symlink target doesn’t generalize across setups).

Stage 2a — future scenario, temperature/salinity (delta-change)

cd /home/kb/source/repos/OceanICU/oceanicu_3d/NSe
run-delta-boundaries --config config/nse_delta_bdy.yaml --dryrun
run-delta-boundaries --config config/nse_delta_bdy.yaml --scenario ssp126 ssp370 ssp585
run-delta-boundaries --config config/nse_delta_bdy.yaml \
    --future-start 2070-01-01 --future-end 2099-12-31
run-delta-boundaries --config config/nse_delta_bdy.yaml --variable thetao so

Method: corrected(t) = AMM7/AMM15_ref(t_analog) + [CMIP6_future_clim(month) − CMIP6_hist_clim(month)], where t_analog cycles through the historical reference period (same calendar day/hour, year mapped modulo the reference length). Safe to run as long as stage 1’s hourly/daily files are current and correctly aligned with NSe/Bathymetry/nse_bdy_lonlat.txt (they inherit its point layout automatically from their own boundary_lon/boundary_lat/segment_id).

Stage 2b — future scenario, SSH/currents (tidal + CMIP6)

cd /home/kb/source/repos/OceanICU/oceanicu_3d/NSe
run-tidal-boundaries --config config/nse_tidal_bdy.yaml --dryrun
run-tidal-boundaries --config config/nse_tidal_bdy.yaml
run-tidal-boundaries --config config/nse_tidal_bdy.yaml --start 2060-01-01 --end 2060-12-31
run-tidal-boundaries --config config/nse_tidal_bdy.yaml --model UKESM1-0-LL --scenario ssp126

NSe/config/nse_tidal_bdy.yaml’s file_path is ./Bathymetry/nse_bdy_lonlat.txt, a relative path resolved against the working directory — must still be run with cwd = NSe/.

2. Post-generation sanity checks

• Re-run the land/water check in §0 if the bathymetry changed since the NC files were last built.
• nc_nan_scan.py (repo root, oceanicu_3d/nc_nan_scan.py) can scan any resulting or model-output NetCDF for unexpected NaNs inside the computational domain, distinguishing genuine bugs from NaN that’s expected at open-boundary points for terms like advU/advV. See its own docstring — in short:

  python nc_nan_scan.py some_output.nc --vars advU,advV \
      --exclude-boundary-vars advU,advV --boundary-value 3,4


  (boundary mask codes are model/file-specific — check the “values=” list the tool prints per mask; this NSe setup’s masku/maskv use 3 and 4 for boundary orientation, not the GETM-textbook single code 2, which only the T-mask maskt uses here.)

3. Known copies of nse_bdy_lonlat.txt — resolved 2026-08-17

As of 2026-08-03 there were four divergent copies of this file across three repos (NSe/, the oceanicu_3d repo root, boundaries (now boundaries.old), and ocean-prep), with most configs pointing at the wrong one — this section used to document that mess in detail. It’s now resolved:

• Canonical, single copy: NSe/Bathymetry/nse_bdy_lonlat.txt (moved from NSe/nse_bdy_lonlat.txt; still verified against getm-dump.nc, 0 points different).
• Every config (NSe/config/{nse_bdy_create,nse_init_create,nse_tidal_bdy}.yaml, and boundaries.old/config/{nse_bdy_create,nse_init_create}.yaml) references this one copy directly — a real absolute path in every case except NSe/config/nse_tidal_bdy.yaml, which uses a relative path resolved against cwd=NSe/ (see stage 2b). nse_bdy_create.yaml and nse_init_create.yaml moved here from ocean-prep/config/ on 2026-08-24 (NSe-specific configs belong with the NSe setup, not inside the generic ocean-prep tool repo). No symlinks anywhere — deliberate: this file changes per domain setup, not just NSe, so a shared symlink target wouldn’t generalize.
• The old oceanicu_3d/nse_bdy_lonlat.txt (repo-root, 309-point mis-landed edit — see §0’s “Update, 2026-08-17” note) is archived at NSe/Bathymetry/nse_bdy_lonlat.txt.mislanded_edit_20260803, not left at the repo root where it could be mistaken for a live copy again.

If this ever drifts again: grep -rln nse_bdy_lonlat across OceanICU/oceanicu_3d, ocean-prep, and boundaries.old to find every reference, then verify each with ls -la (should show a real file at NSe/Bathymetry/nse_bdy_lonlat.txt and nothing else with that basename outside .bak*/archived copies) before trusting any of them.

NSe

North Sea/eastern Atlantic domain setup. This file is the entry point for “what do I run to (re)generate the inputs” — each topic below links to a deeper doc where one already exists. Expected to grow as more of the setup gets documented (river discharge, meteo, running the model itself, …).

Bathymetry

cd /home/kb/source/repos/OceanICU/oceanicu_3d/NSe
./generate_nse_bathymetry.py                # full run (fixes applied by default), writes Bathymetry/bathymetry_nse.nc
./generate_nse_bathymetry.py --dryrun        # print resolved config, write nothing
./generate_nse_bathymetry.py --no-fixes      # skip --fixes-file/--accept-fixes
./generate_nse_bathymetry.py --extract-only  # (re)run the ncks GEBCO extraction step only

Behaviour (coarse source, depth/mask variable names, fixes:, mask_regions:, thalweg: waypoints, smooth.local_filters, smooth.local_rx0) is controlled by NSe/config/nse_bathymetry.yaml — edit that and re-run, no flags needed for config changes. Overwrites bathymetry_nse.nc in place, no automatic backup — copy it first if you want to diff against the previous version.

After any regeneration, re-verify NSe/Bathymetry/nse_bdy_lonlat.txt against the new mask — a bathymetry fix can silently put boundary points on land with no error anywhere else. See BOUNDARY_GENERATION.md’s “§0 — read this first” for the check to run and why it matters.

Runs fine on either orca or bb-server1 — no external data dependency beyond the local GEBCO source and ocean-prep’s bathymetry tooling.

Boundaries

Run on bb-server1, not orca (2026-08-24): the CMEMS/CMIP6/TPXO9 download caches these tools need (/data/cache/cmems, /data/cache/cmip6, /data/cache/tpxo9, plus the /data/CMIP6 and /data/TPXO9 source archives) live on bb-server1, not orca — orca’s copies were migrated over and removed. All output.base_directory paths below are bb-server1 absolute paths (/data/OceanICU/oceanicu_3d/data/NSe/...) accordingly.

Full runbook: BOUNDARY_GENERATION.md (point-file provenance, the three-stage pipeline, post-generation sanity checks, known copies of nse_bdy_lonlat.txt). Short version:

# Stage 1 — historical reference (CMEMS)
cd /home/kb/source/repos/OceanICU/oceanicu_3d/NSe
run-cmems-boundaries --config config/nse_bdy_create.yaml --dryrun
run-cmems-boundaries --config config/nse_bdy_create.yaml

# Stage 2a — future scenario, temperature/salinity (delta-change)
cd /home/kb/source/repos/OceanICU/oceanicu_3d/NSe
run-delta-boundaries --config config/nse_delta_bdy.yaml --dryrun
run-delta-boundaries --config config/nse_delta_bdy.yaml --scenario ssp126 ssp370 ssp585

# Stage 2b — future scenario, SSH/currents (tidal + CMIP6)
cd /home/kb/source/repos/OceanICU/oceanicu_3d/NSe
run-tidal-boundaries --config config/nse_tidal_bdy.yaml --dryrun
run-tidal-boundaries --config config/nse_tidal_bdy.yaml

Stage 1 must exist before stage 2a can run (2a inherits its boundary-point layout from stage 1’s own NC files). Stage 2b is independent of stage 1.

Initial conditions

Run on bb-server1, not orca — same reason as boundaries above (CMEMS download cache lives there now).

Two source options — pick with --source; AMM7 is the default/primary (1993–2026-04-30 coverage), AMM15 covers 2024-03-01 onward:

cd /home/kb/source/repos/OceanICU/oceanicu_3d/NSe
download-init-conditions --config config/nse_init_create.yaml --source AMM7
download-init-conditions --config config/nse_init_create.yaml --source AMM15
download-init-conditions --config config/nse_init_create.yaml --source AMM7 --year 2015
download-init-conditions --config config/nse_init_create.yaml --source AMM7 --dryrun
download-init-conditions --config config/nse_init_create.yaml --source AMM7 --check-coverage

Downloads temperature/salinity on the source product’s native grid and writes 12 monthly snapshots (1st of each month) per variable to /data/OceanICU/oceanicu_3d/data/NSe/CMEMS/init/ (output.base_directory in config/nse_init_create.yaml). The NWS product (AMM7/AMM15) is primary and defines the output grid; the corresponding Baltic product fills the masked southern Kattegat/Belt Sea halo. flood_fill: true in the config also writes a {variable}_ff flood-filled variant of each field.

Model config

See config/README.md for how nse_from_oceanicu.yaml (the pygetm-config-schema domain config actually used to run the model) relates to nse_model_config.yaml, and driver/README.md for the driver itself (--print-config, --dump-python, data-path portability, the TUI editor).

More to follow

River discharge, meteo forcing, and running the model itself aren’t documented here yet.

North Sea Extension (NSe)

Domain Description

The NSe domain is a high-resolution regional configuration covering the northwest European shelf and the southern North Sea, from the English Channel in the south to the Norwegian coast in the north. It extends eastward into the Kattegat and the entrance to the Baltic Sea.

Geographic Coverage

• Latitude: 47.5°N to 62.0°N
• Longitude: 8°W to 13°E
• Resolution: ~1/12° spherical grid (~7–9 km)
• Vertical: 40 generalised vertical coordinate (GVC) levels

Key Features

• 9 open boundary segments, auto-detected from coordinate file (min gap 0.5°); segment 7 (eastern Kattegat) uses Baltic product override throughout because the NWS domain is masked in that region
• Bathymetry from GEBCO 2025 with Beckmann–Haidvogel smoothing (rx0 ≤ 0.2) and manual corrections for Belt Sea and Skagen straits
• Future climate projections use TPXO9 tidal forcing + CMIP6 mean-state correction (zos, uo, vo) plus a 3-D delta-change signal for temperature and salinity

Observation Datasets

Observations

ARGO — 2010-2013

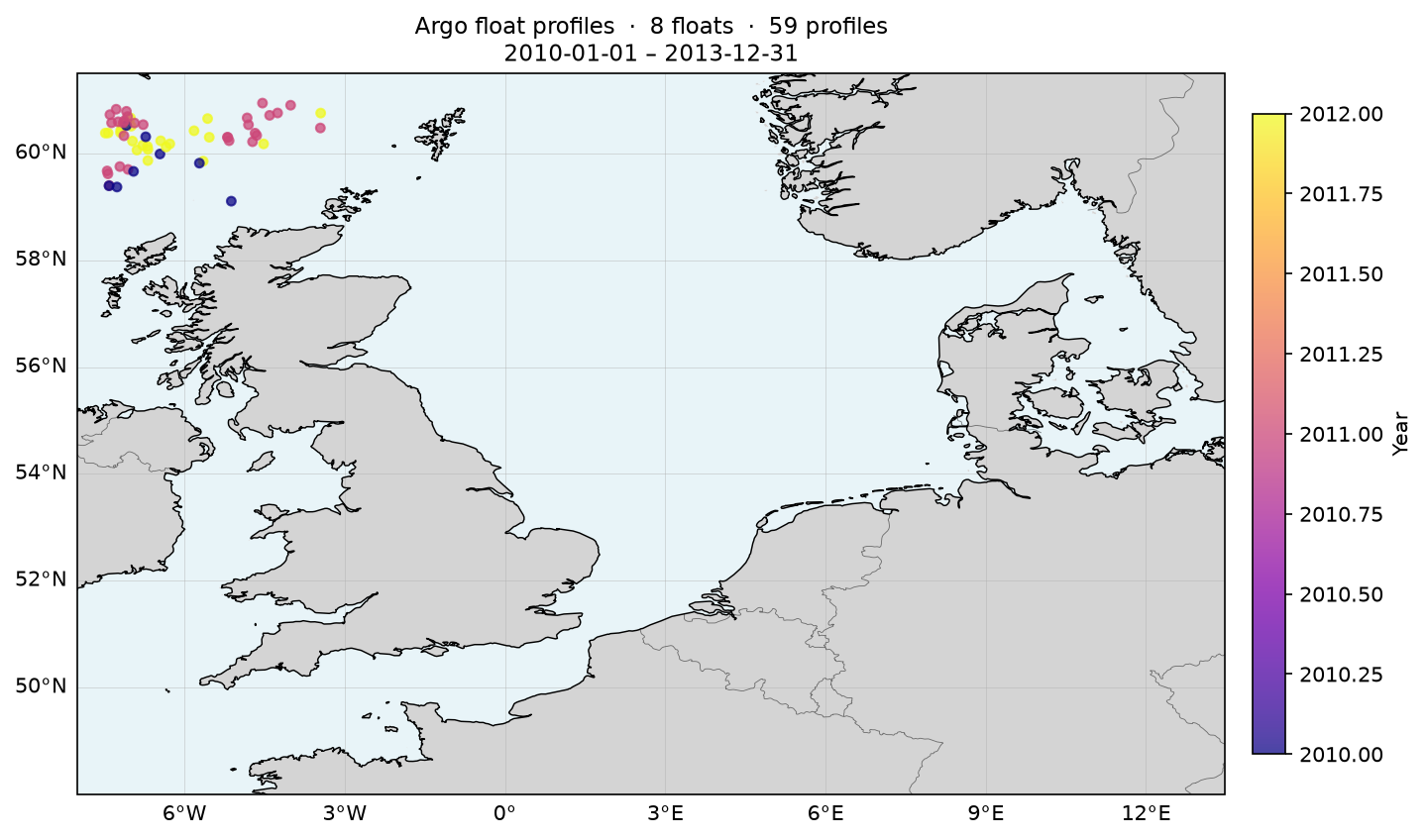

Station Map

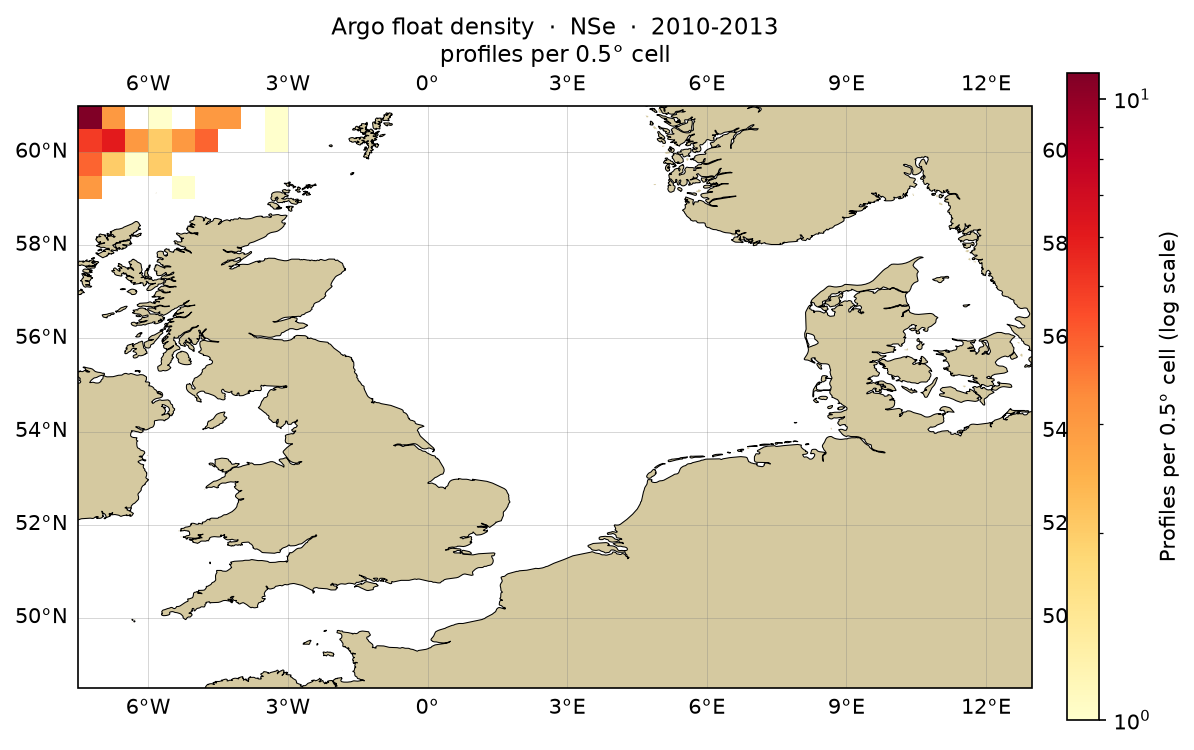

Observation Density

CRUISE — 2010-2013

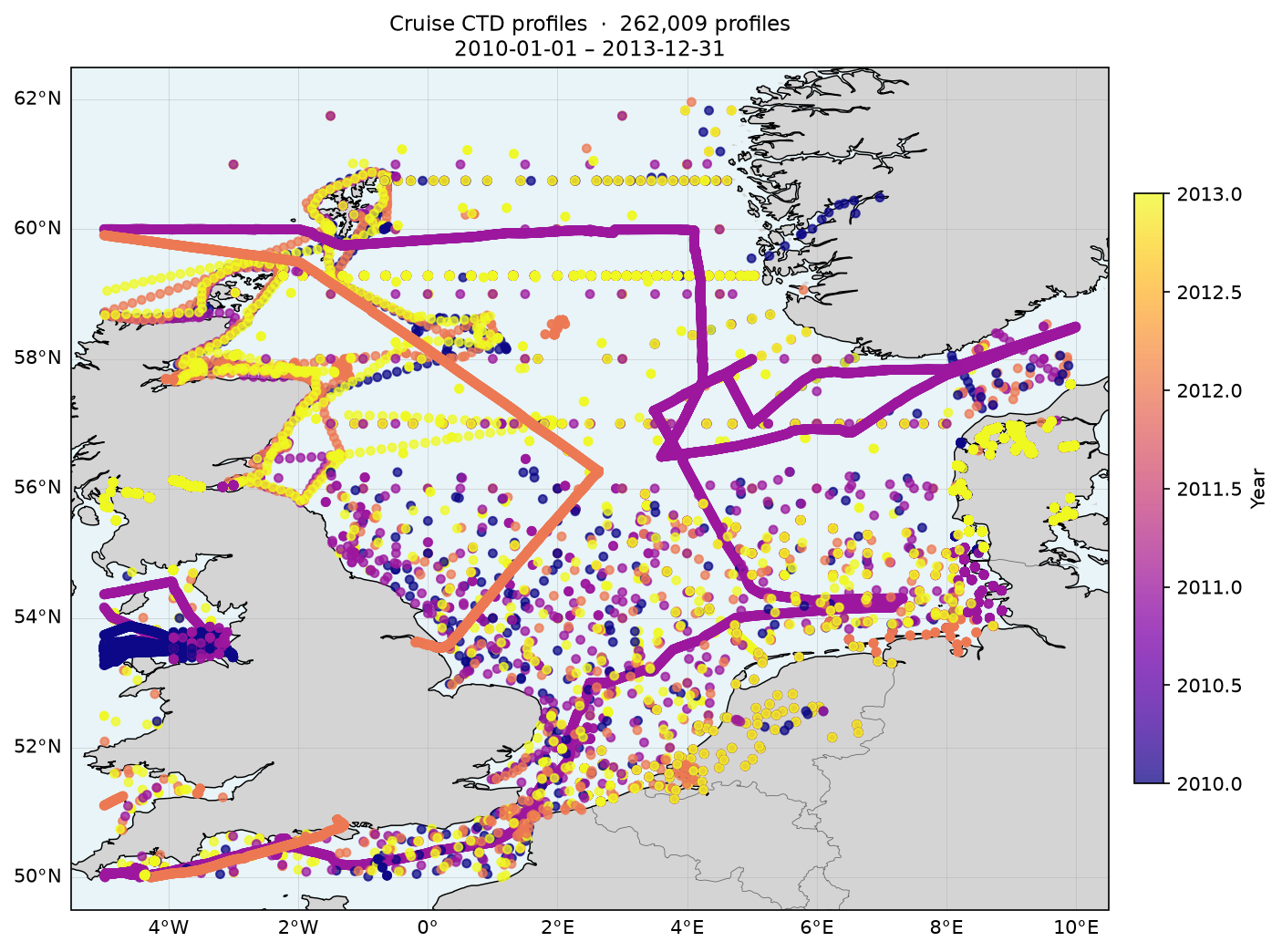

Station Map

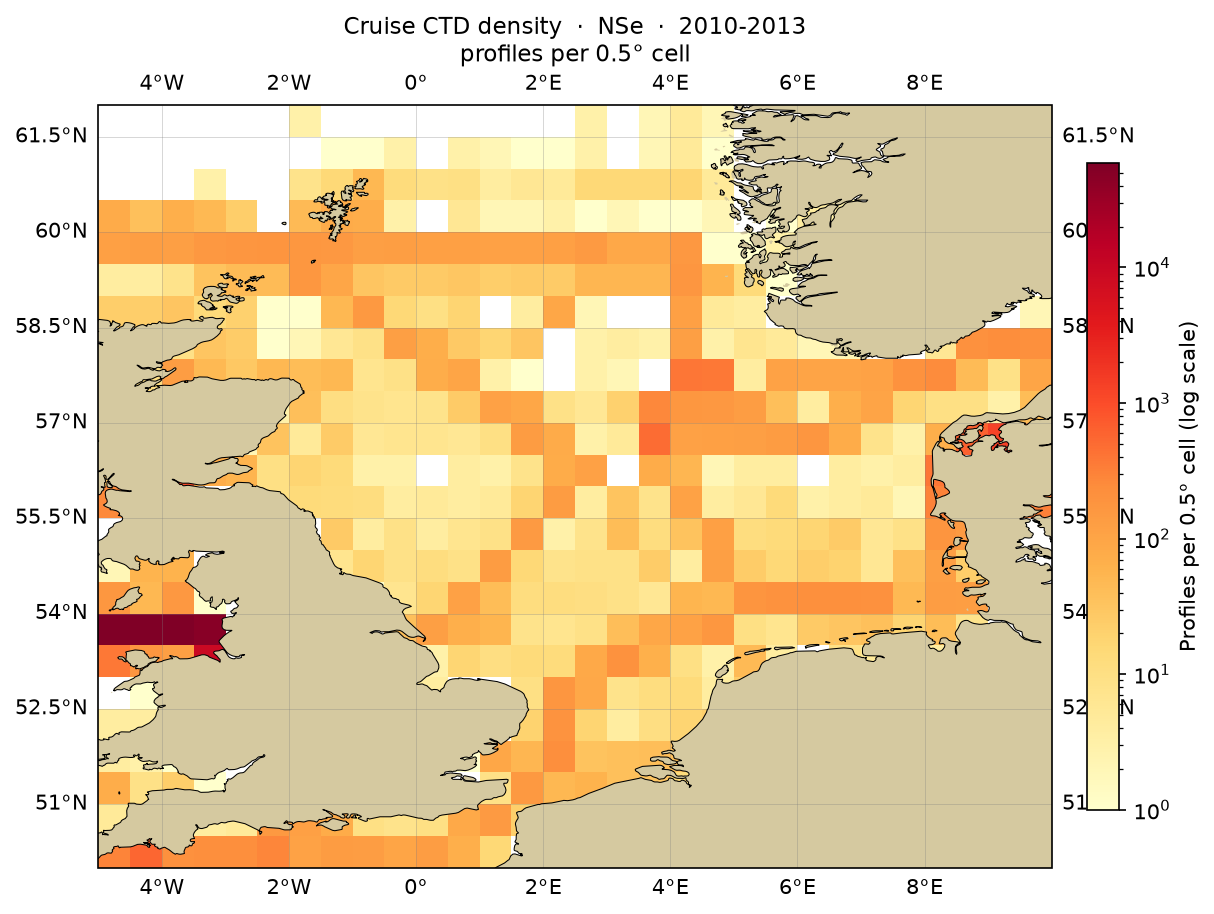

Observation Density

ICES — 2010-2013

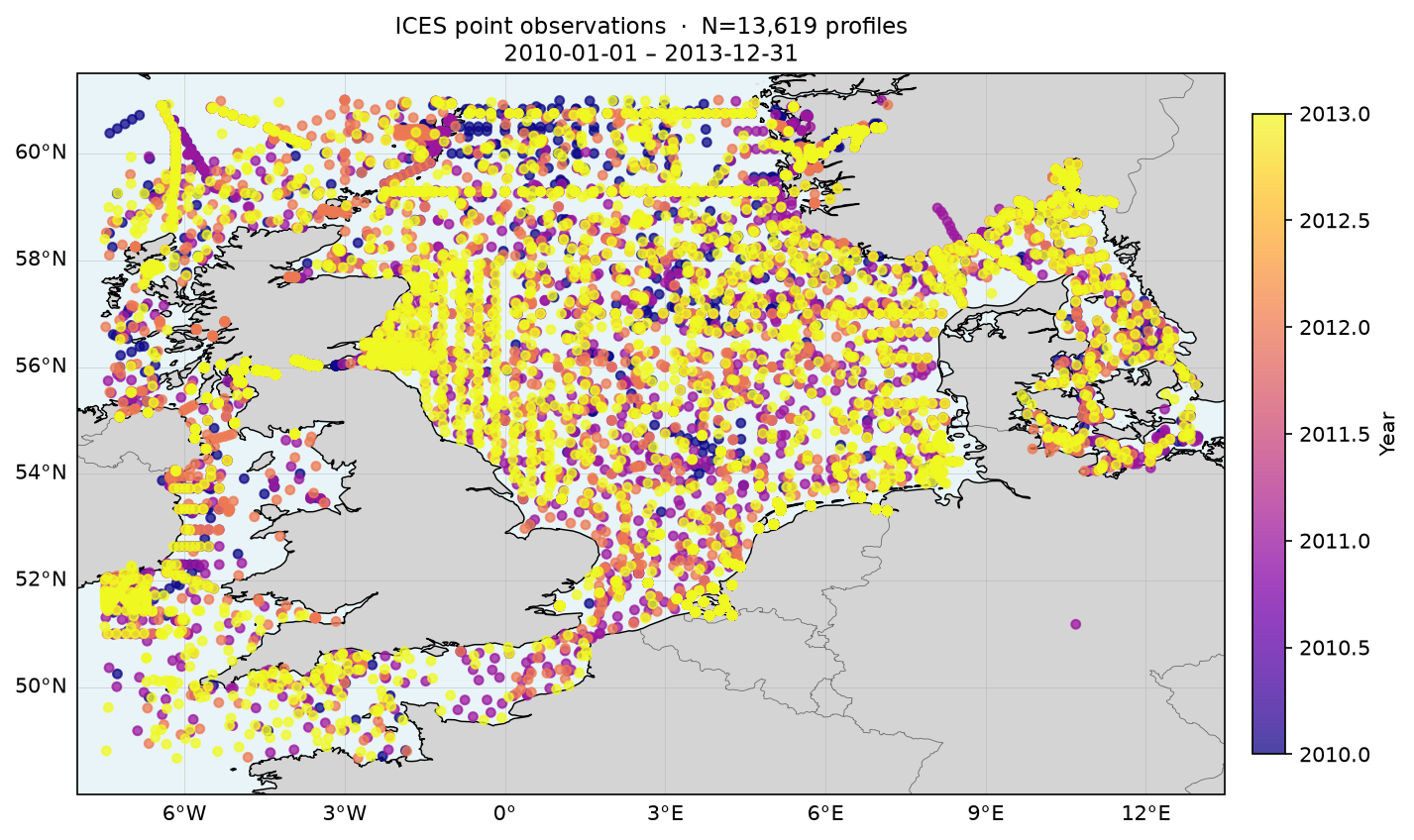

Station Map

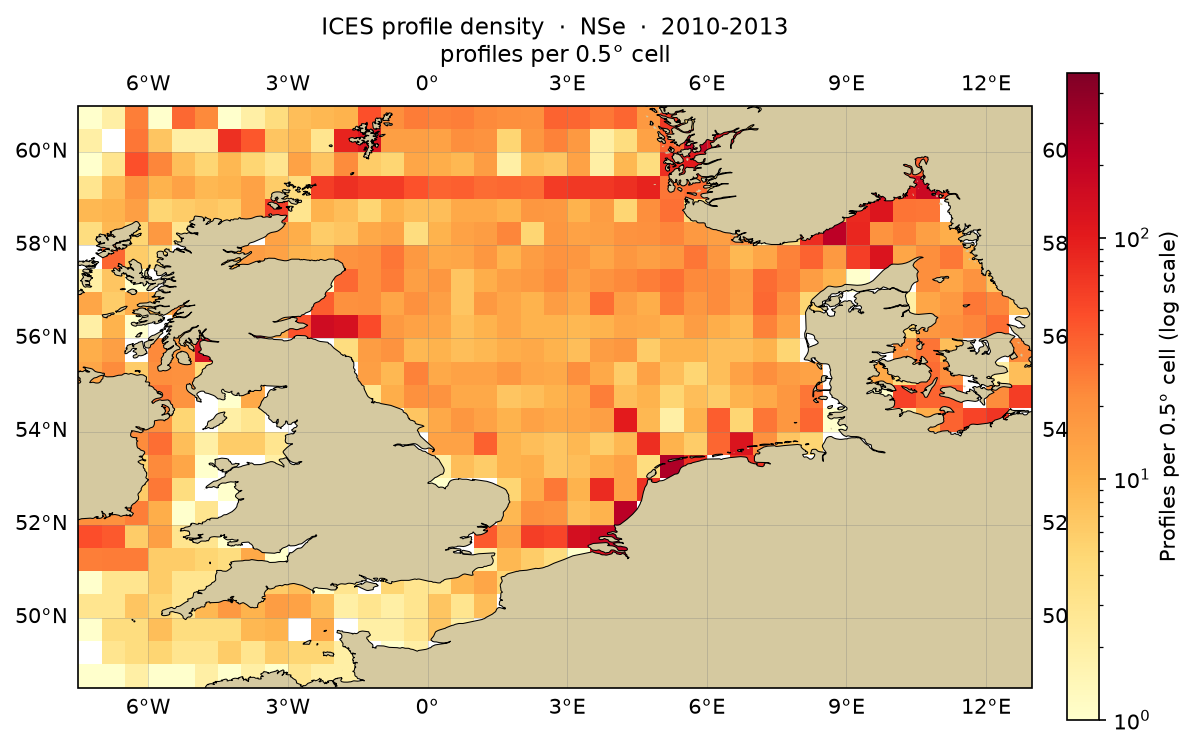

Observation Density

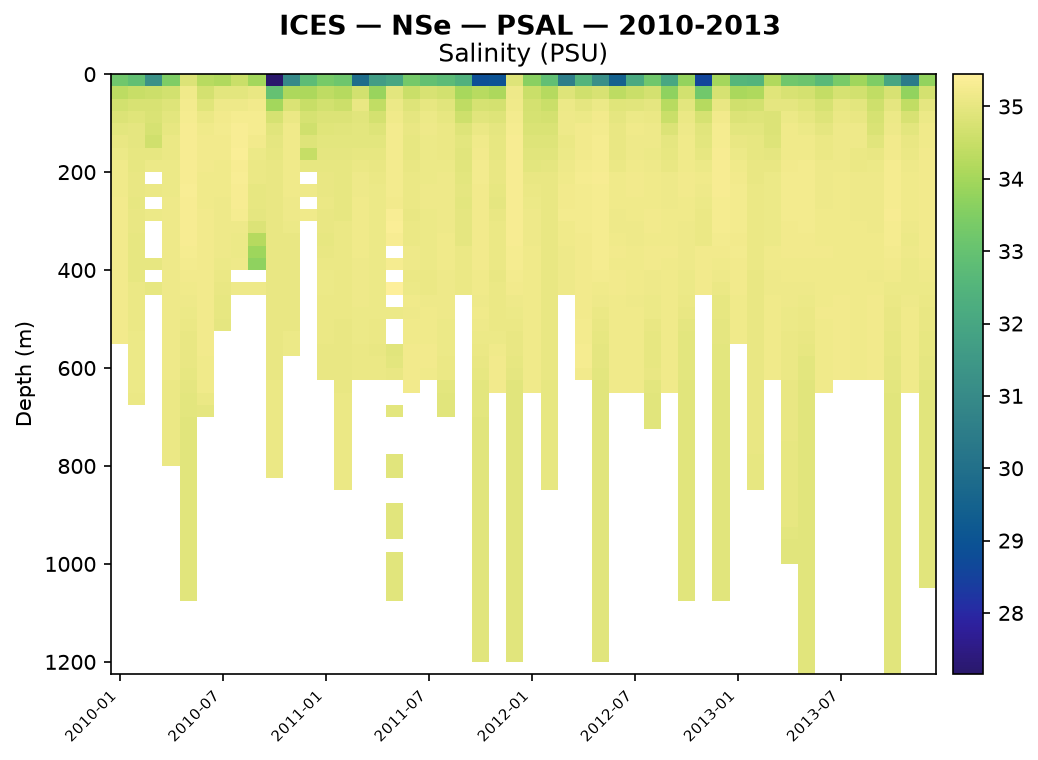

PSAL Hovmoller

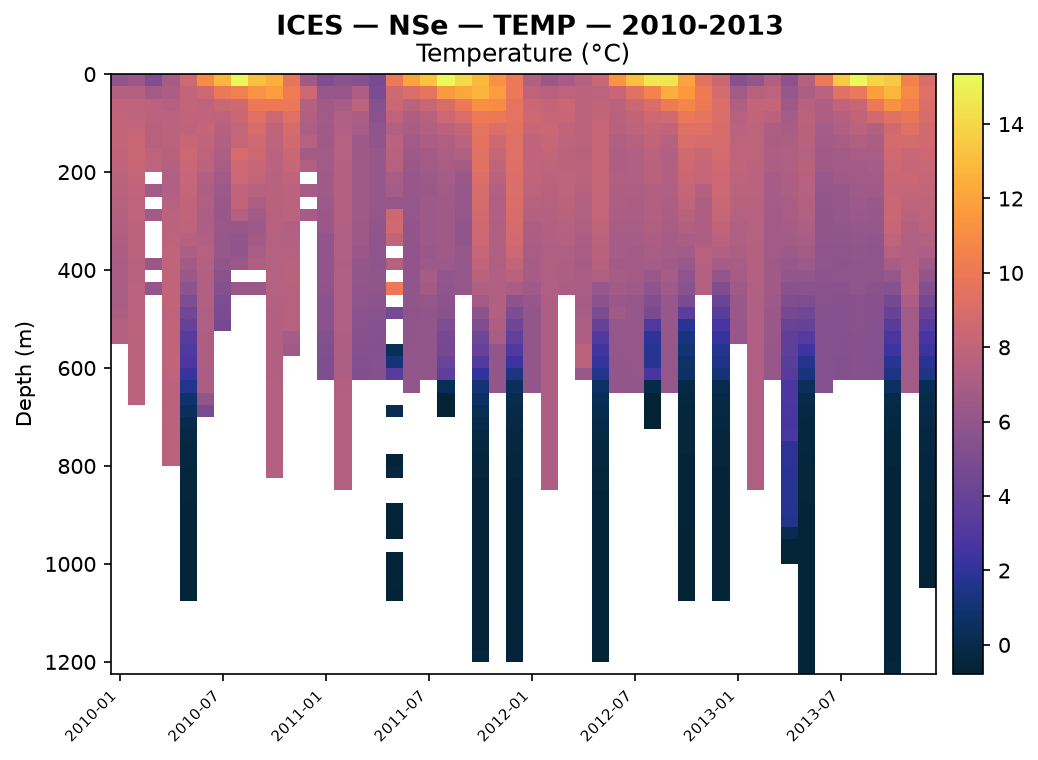

TEMP Hovmoller

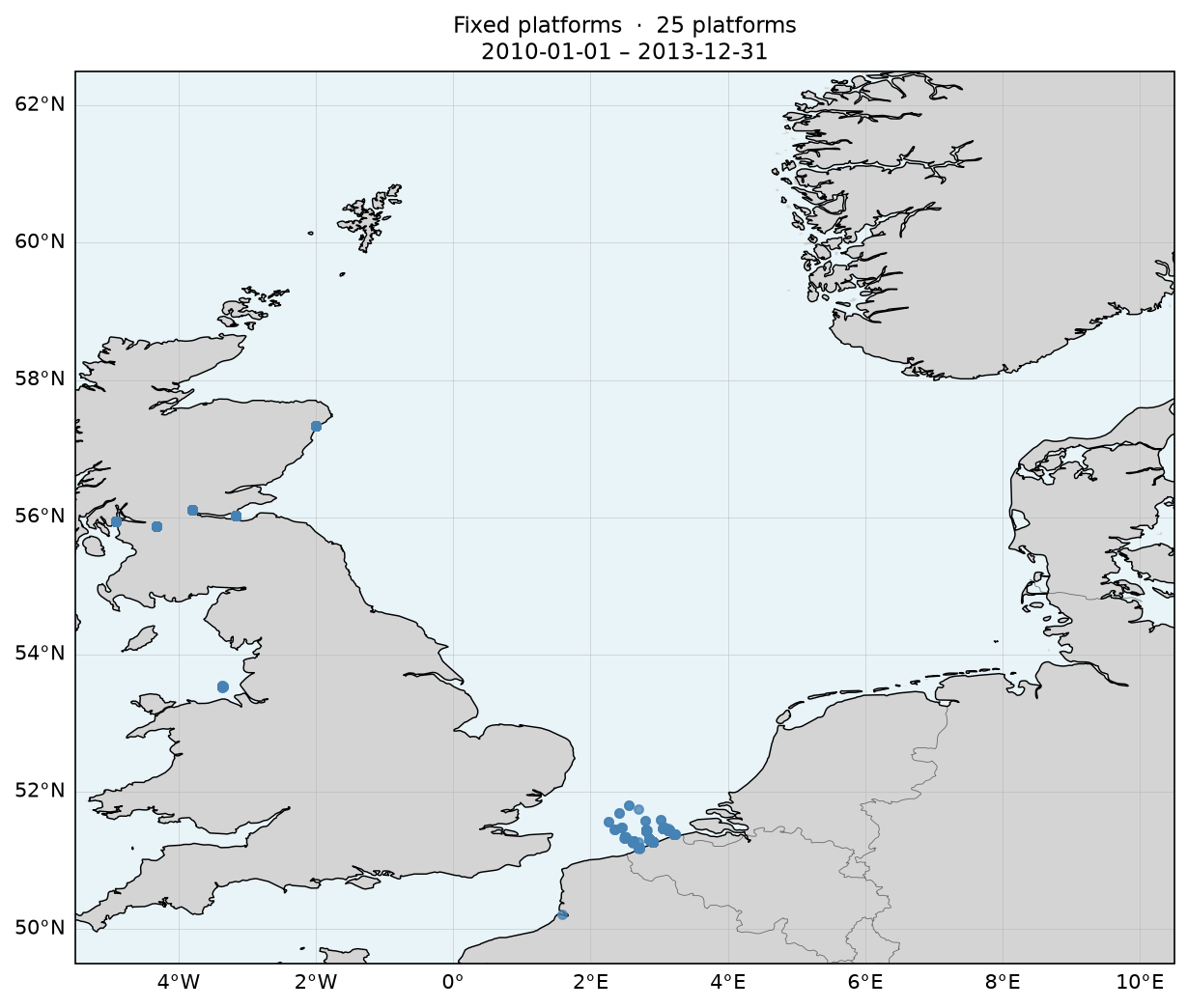

PLATFORM — 2010-2013

Station Map

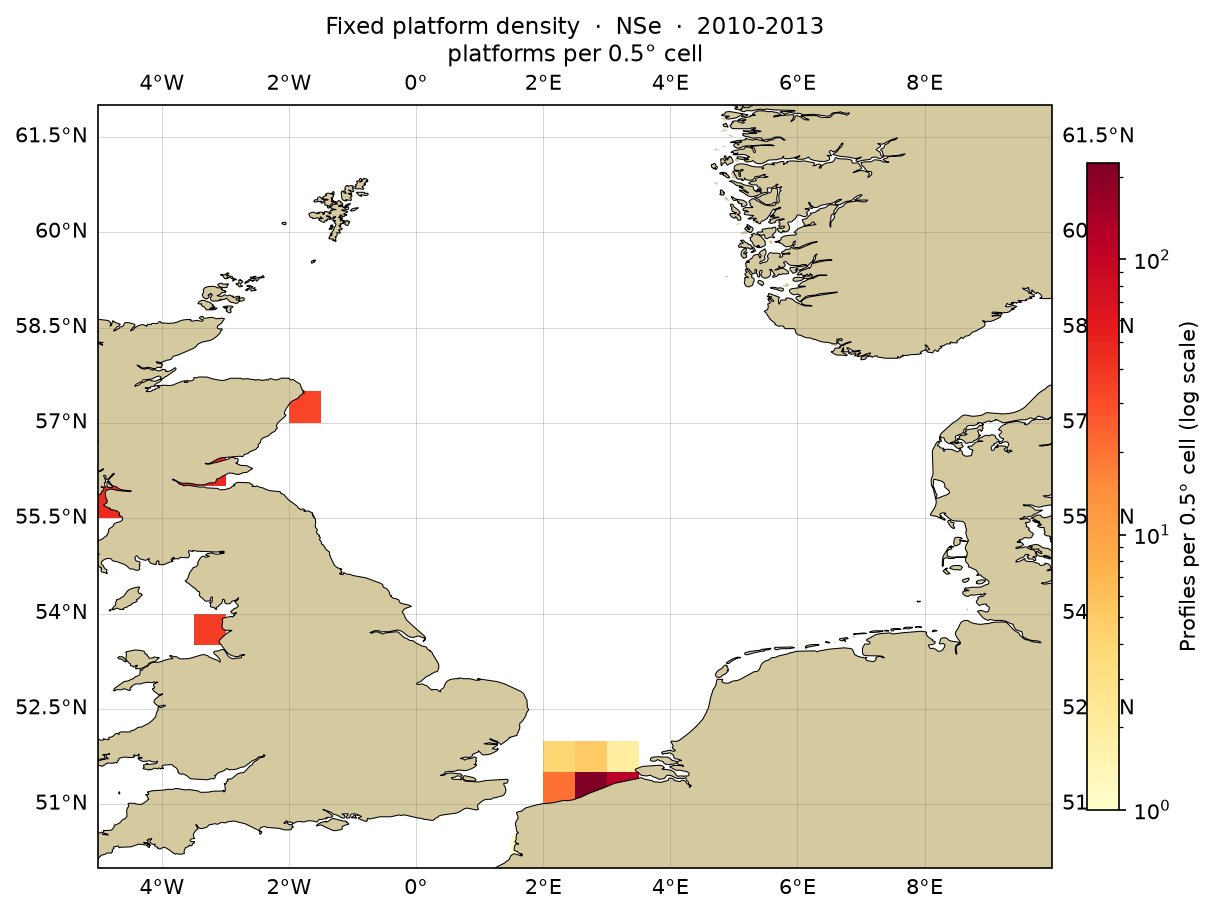

Observation Density

Cross-experiment Summary

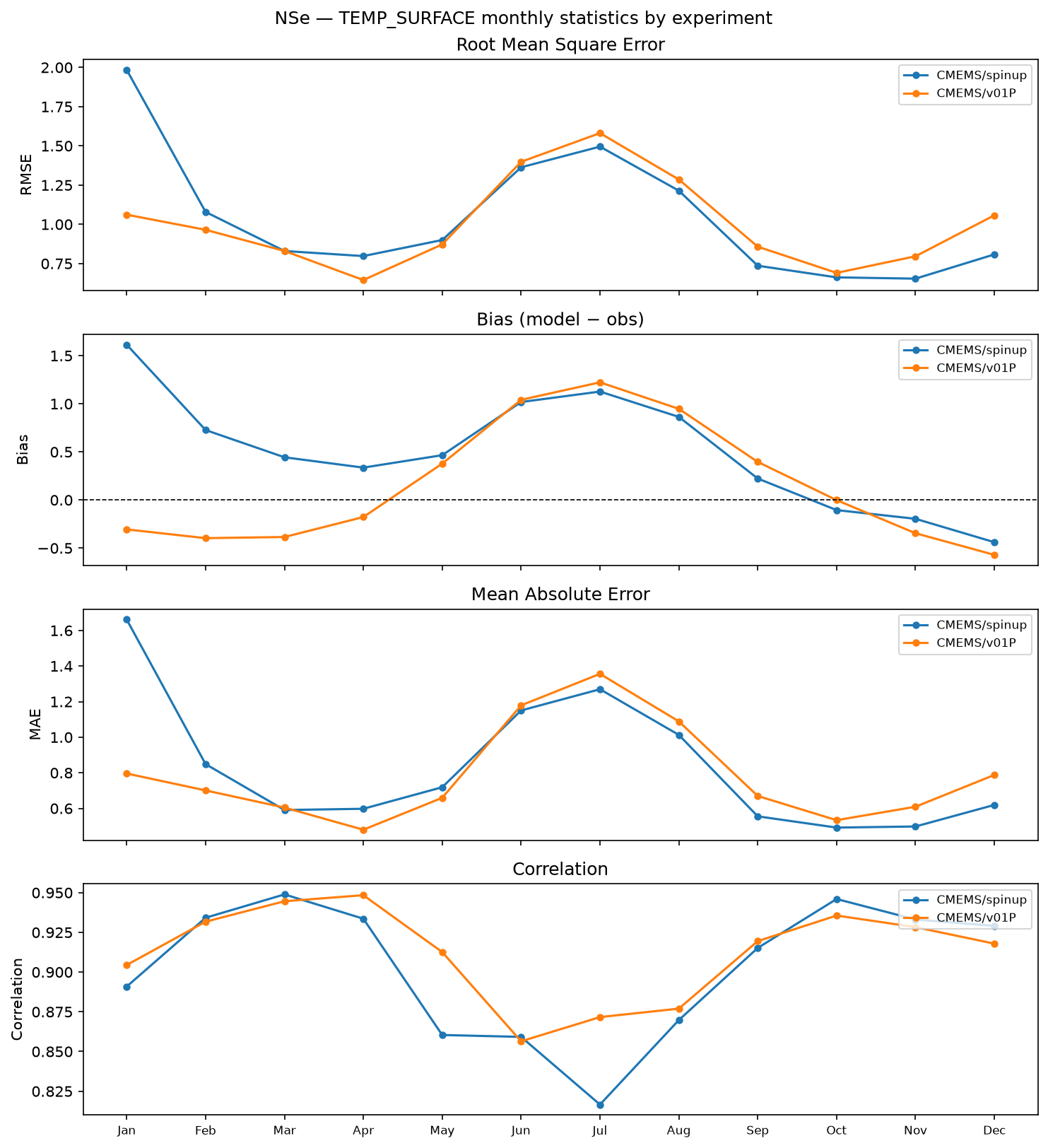

Surface

How Input Files Were Generated

Future ocean boundary conditions use CMIP6 model output as the climate-change signal on top of the historical CMEMS reference (AMM7/AMM15, same for all scenarios).

Scenario Summary

GFDL-ESM4

MPI-ESM1-2-HR

Bathymetry

Bathymetry

Regridded conservatively from GEBCO 2025 onto the NSe ~1/12° spherical grid using bathymetry-regrid (ocean-prep), with Beckmann-Haidvogel smoothing (rx0 ≤ 0.2) and manual depth fixes for Belt Sea straits and Skagen. Output: bathymetry_nse.nc with variables lon, lat, mask, H.

NSe bathymetry config

Config not yet committed — will be added once NSe grid parameters are finalised.

bathymetry-regrid --config config/nse_bathy_create.yaml

Boundary Conditions

CMEMS historical boundaries (T, S, SSH, currents)

AMM7 NWS MY reanalysis (1993–2026-04-30) blended with AMM15 NWS ANFC (2026-05-01 onwards). Segment 7 (eastern Kattegat) overridden with Baltic products for all variables; SSH uses Baltic detided product from 2022-12-02. Processed with ocean-prep run_cmems_boundaries.

NSe CMEMS boundary config

python cli/run_cmems_boundaries.py --config config/nse_bdy_create.yaml

Tidal boundaries (TPXO9 + CMIP6 mean SSH / barotropic transport)

TPXO9-atlas (13 constituents) tidal prediction for zos, uo, vo combined with CMIP6 monthly mean sea-surface height and depth-integrated barotropic transport. Scenario-specific; see Scenario Summary table below.

NSe tidal boundary config

run-tidal-boundaries --config config/nse_tidal_bdy.yaml

3-D delta-change boundaries (T, S and optionally currents)

Future 3-D boundary conditions via the delta-change method: AMM7/AMM15 historical CMEMS reference cycled over the output period, with a CMIP6 monthly change signal (future 20-yr climatology minus historical 1985–2014 climatology) added at each boundary point. Scenario-specific; see Scenario Summary table below.

NSe delta-change boundary config

run-delta-boundaries --config config/nse_delta_bdy.yaml --scenario ssp126

Initial Conditions

Initial conditions (temperature, salinity)

Monthly snapshots (1st of each month) from CMEMS NWS products — AMM7 MY reanalysis or AMM15 ANFC — with the Baltic ANFC product filling the southern Kattegat masked halo. Flood-fill propagates valid values into any remaining NaN cells on the model grid.

NSe initial conditions config

python cli/download_init_conditions.py --config config/nse_init_create.yaml --source AMM7 --year 2015
